TS-N738MA

Hydraulic Automatic Cementing Toe Lasting Machine 9 Pincers - COMPUTERIZED

Shoe Cutting Machines

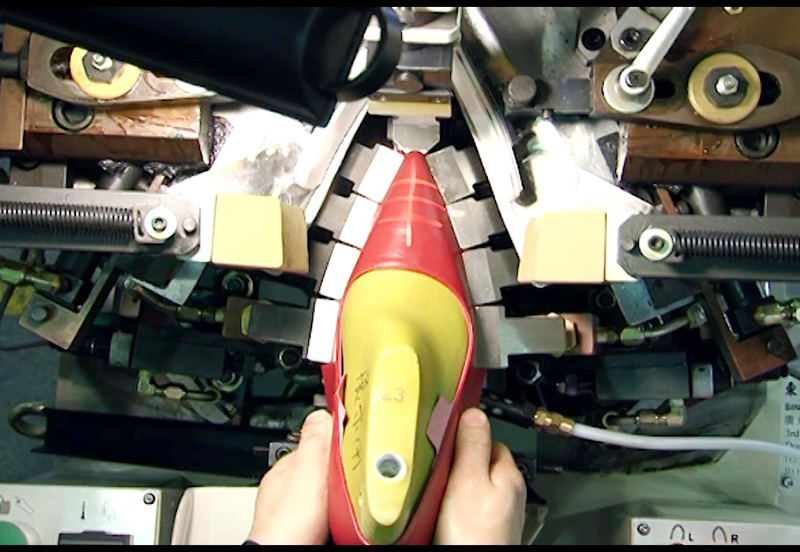

TS-N738MA Hydraulic Automatic Cementing Toe Lasting Machine 9 Pincers - Computerized Touch Screen Operation.: High-Precision Lasting Floor Solution with Smart Memory & Japanese FUJI HMI; Are you looking to eliminate lasting floor bottlenecks, reduce high labor costs, and achieve flawless, wrinkle-free upper tension on your production line?; The Elitech TS-N738MA is our heavy-duty, advanced computerized flagship toe lasting machine engineered for modern, high-efficiency footwear factories worldwide. It mechanically pulls the shoe's upper material tightly over the last, shaping a beautifully symmetrical toe area before final sole bonding.; If you are estimating your factory upgrading budget and evaluating a high-end toe lasting machine price, the TS-N738MA provides the ultimate return on investment (ROI). By combining advanced digital control with industrial-grade mechanical reliability, it delivers European-standard performance that significantly outperforms and outlasts alternative shoe making machinery.

Add to inquiry

SUITABLE RANGE

For All Kinds of Men Shoes, Lady Shoes or Sport Shoes Lasting

FEATURES

Elitech Flagship Mechanical Features & Engineering Advantages
Linear Wire Potentiometer Angle Memory: The second pincer's angle is fully memorized by a high-precision linear wire potentiometer, allowing the machine to automatically deflect pincer placement according to unique shoe shapes for flawless tension control.

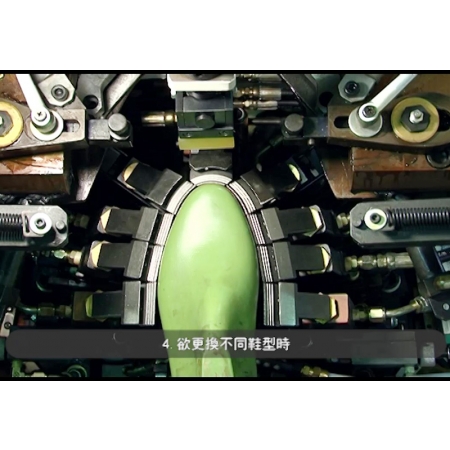

Toolless Quick-Change Pincer Structure: Maximize your workshop uptime. The 1st pincer and the 2nd set of pincers are engineered with an easy-tooling structure, allowing operators to complete replacement rapidly without any tools.

Japanese FUJI Color Touch Screen HMI: Imported high-end FUJI colorful monitor interface allows operators to set, modify, and manage all lasting parameters and wiper movements (including slow and inch movement calibration) instantly.

Intelligent Self-Detection & Diagnostics: Built-in electronic fault self-detection displays mechanical actions and electrical switch status directly on the HMI screen, drastically reducing maintenance and troubleshooting time.

Zero Manual Gluing: The insole and vamp do not require manual gluing before lasting, thanks to our fully integrated automatic hot melt cementing system that saves massive material and labor costs.

Patented Toolless Wiper Calibrator: Heated wipers and forming bands mold the toe material perfectly. The design of the wiper downward position adjustment can be calibrated instantly without tools.

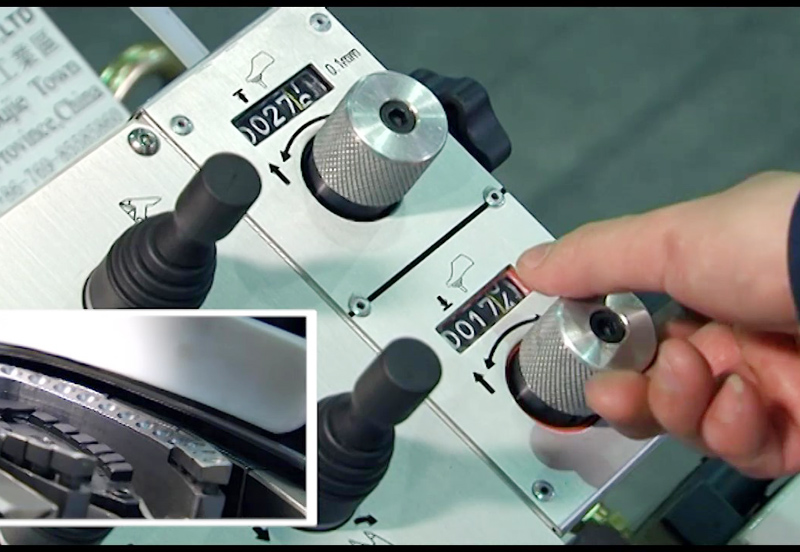

0.1mm Accuracy Repeatability: The rising and starting positions of the last supporter are adjusted on the side of the machine via a numerical displayer, ensuring ultra-precise, repeatable configurations.

Flexible Yards Calibration: The front and rear positions of the last and outer supporters (hot melt dispenser) are highly adjustable, making style configurations for different shoe yards flexible and convenient.

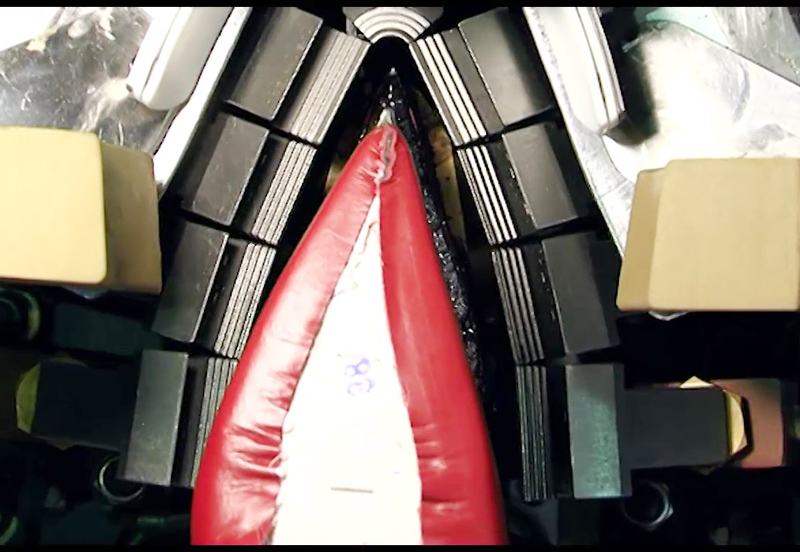

Brand-New 5-Point Geometry: Features our newly updated 5-pointed toe-band paired with an optimized wiper trajectory to deliver tight, premium results across fine leather and sports shoe uppers.

SPECIFICATION

Premium Heavy-Duty Spare Parts Brand List

To ensure industrial-grade reliability and uninterrupted 24/7 production on your footwear factory floor, Elitech utilizes only world-class, top-tier components from Japan and Taiwan:

Spare Parts	Origin / Brand
HMI (Colorful Monitor Interface)	Japan / Fuji
Programmable Controller (PLC)	Japan / Mitsubishi
Communication Module	Japan / Mitsubishi
Analog input Module	Japan / Mitsubishi
PLC Input & Output Modules	Japan / Mitsubishi
Servo Driver	Taiwan / Delta
Power Supplier	Taiwan / Mean Well
Hydraulic Pipe	Japan, Continental
Relay Socket	Japan, Omron
Micro & Pedal Switches	Taiwan / Tend
Key, Select & Cross Switches	Taiwan / Reny
Proximity Switches & SSR	Taiwan / Fotek
Magnetic Switch	Taiwan / Teco
