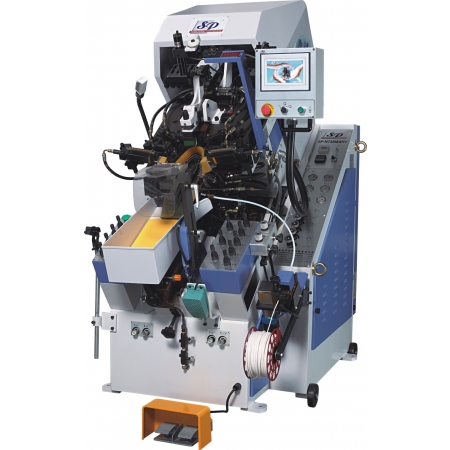

TS-N738MAH+

Hydraulic Automatic Cementing Toe Lasting Machine 9 Pincers - COMPUTERIZED-3 Layer Pincer - Servo Motor Glue Feeding

Shoe Cutting Machines

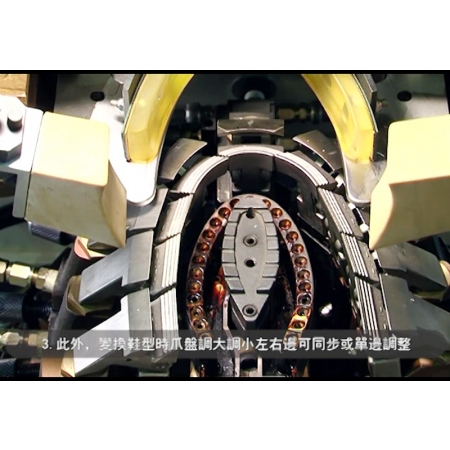

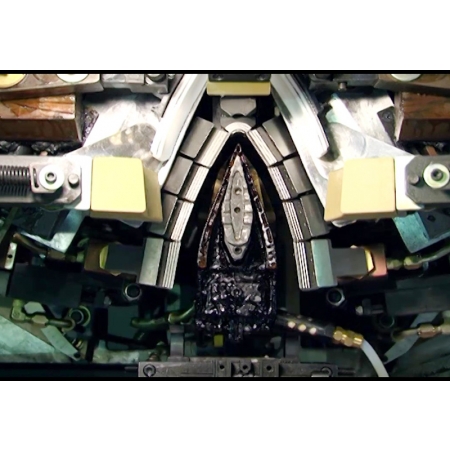

1. The insole and vamp of TS-N738MAH+ do not need to glue manually in the beginning because of the automatic cementing system.

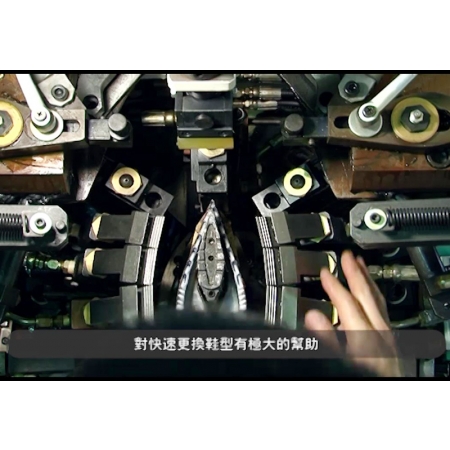

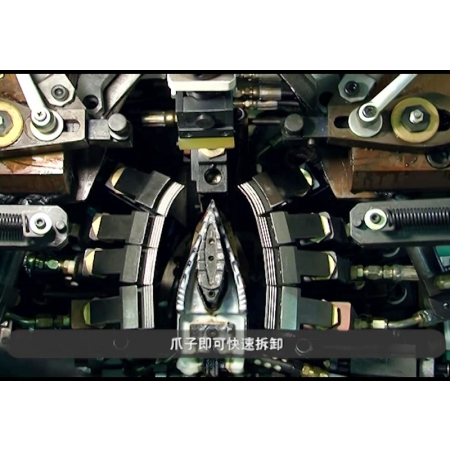

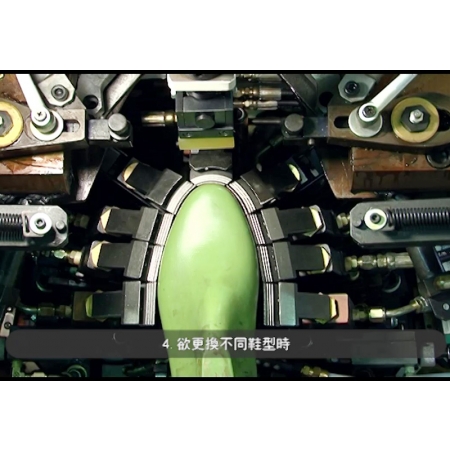

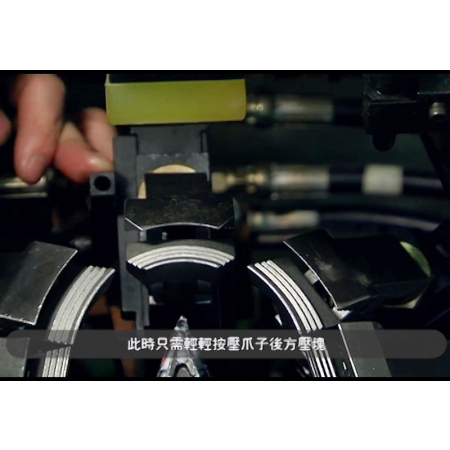

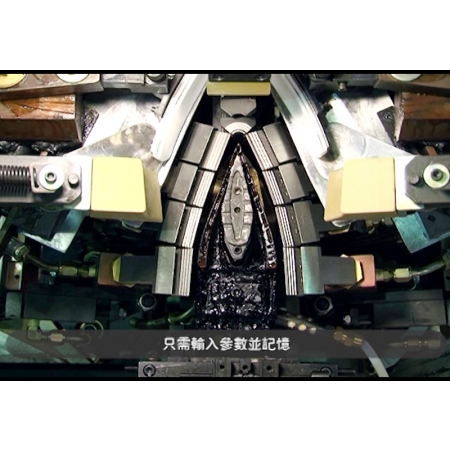

2. The first pincer and second set of pincer are designed of easy-tooling structure, quickly changed it without tools.(fig.2)

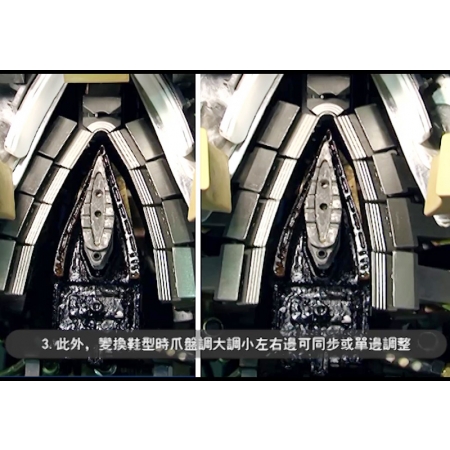

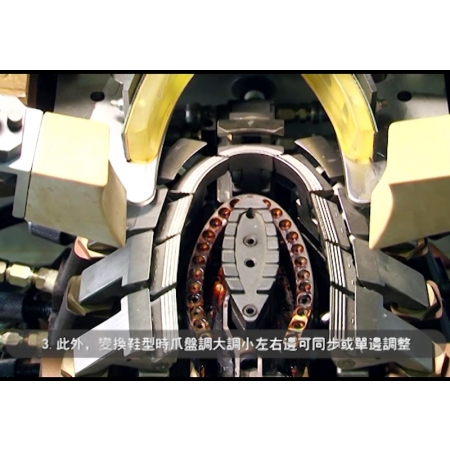

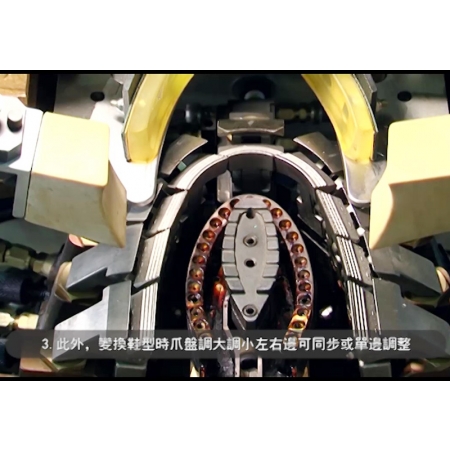

3. The second pincer’s angle memorized by linear wire potentiometer could deflect angle according to shoe shapes.(fig.3)

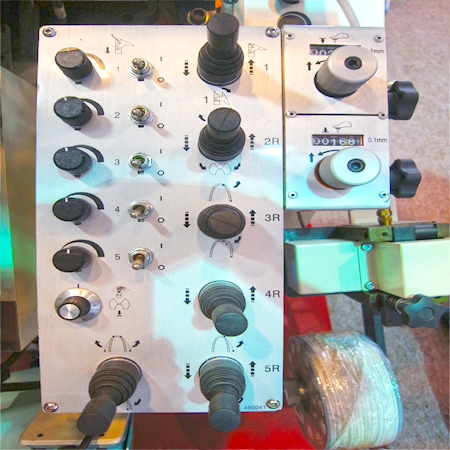

4. The rising position nd the starting position of last supporter could be adjusted on the side of machine with numerical displayer.(fig.4)
5. The design of wiper downward position adjustment could quickly adjust without any tools.(fig.5)

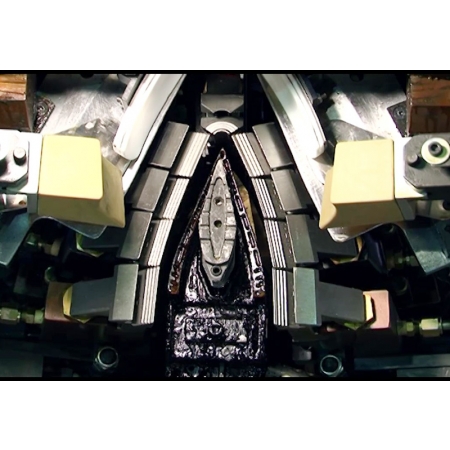

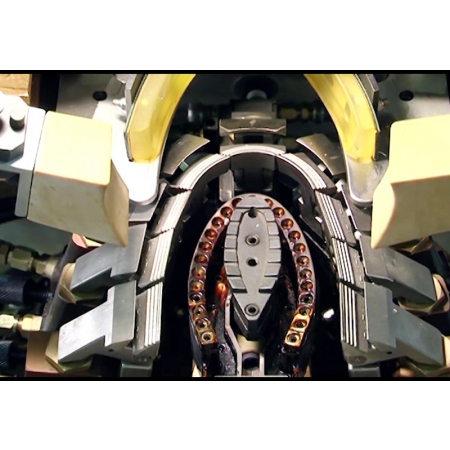

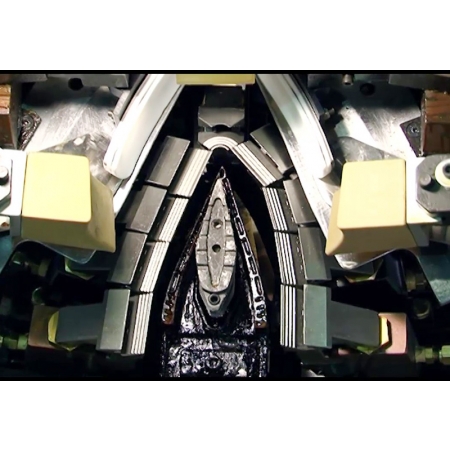

6. Brand new design of five pointed toe-band, to perform better lasting result with easy tooling mechanism.(fig.6)

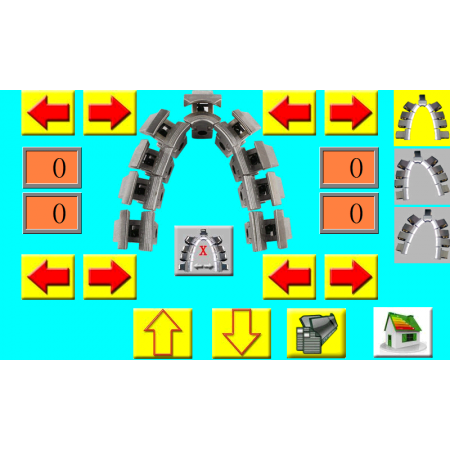

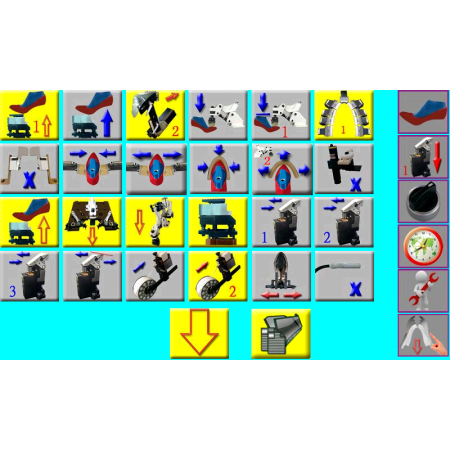

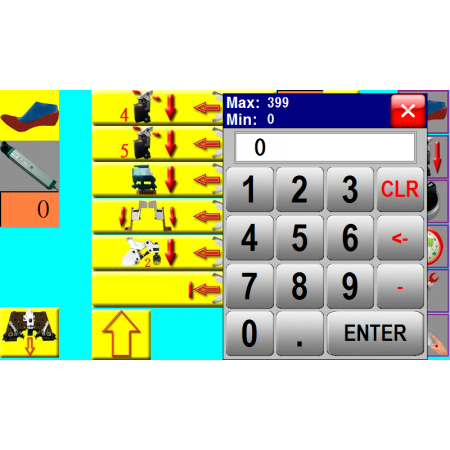

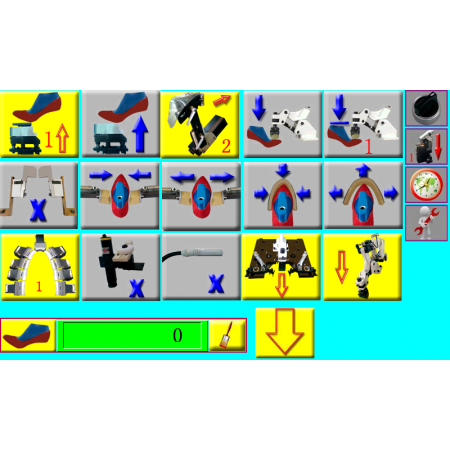

7. All the parameters of lasting and wiper movement are set and modified on the HMI touch screen and wiper has slow and inch movement.
8. Importing from Japanese FUJI’s colorful monitor interface, it has automatic self detection to sense electronic faulting.
Add to inquiry

SUITABLE RANGE

For All Kinds of Men Shoes, Lady Shoes or Sport Shoes Lasting

FEATURES

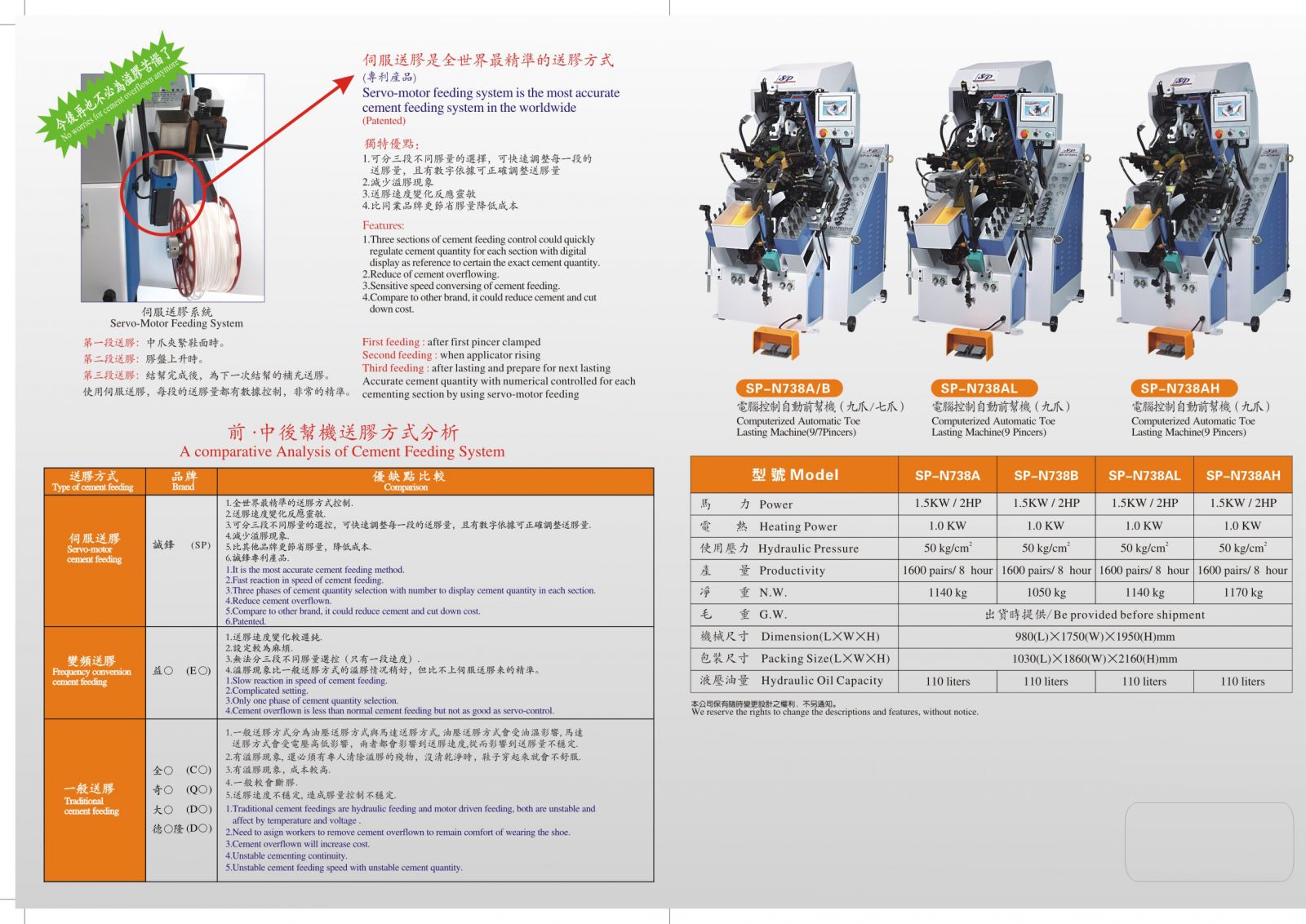

This Machine with Servo-motor Glue Feeding system.
It's the most accurate cement feeding system in the world.

1. Three sections of cement feeding control could quickly regulate cement quantity for each section with digital display as reference to certain the exact cement quantity.

2. Redue of cement overflowing.

3. Sensitive speed conversing of cement feeding.

4. Compare to the other brand, it could reduce cement and cut down cost.

SPECIFICATION
