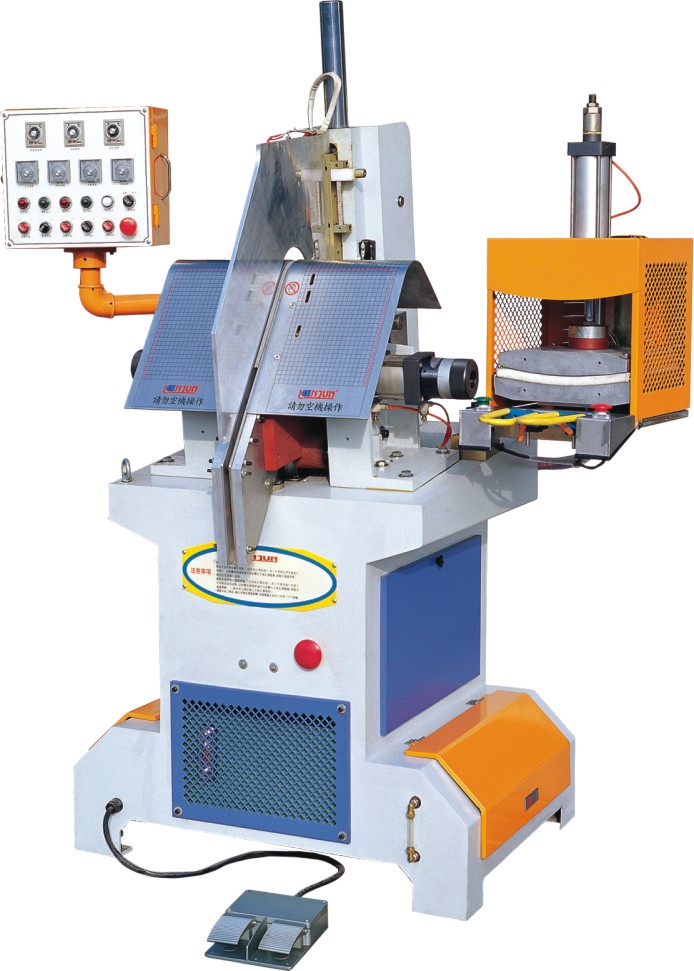

TS-858AM

Hot & Cold Shoe Vamp Crimping Machine

Shoe Cutting Machines
The machine integrates two crimping process- hot and cold crimping work. The fist stage is hot and then the second stage is cold to get a better crimping result. This type use pneumatic system to have fast movement and high efficiency.
Clamping device with Hot & Cold Device, the Knife System with Hot device
2 Angle Knife for Long Boots , Single Angle Knife for Short & Normal Boots vamp.
Add to inquiry

SUITABLE RANGE

for all Kind of Leather Boots, Long Boots...

FEATURES

1. With Hot Pressing device and crimping cold device for excellent molding result.
1.It can adjust depth according to the upper size and adjust the pressure, speed, timing & temperature according to the leather.
2.It can change the wiper according to the upper curve that consistently with the shoe last.
3.The Clip system can make the leather curve uniformity, avoid the defective uppers.
4.Suitable for all kind of leather, especially for the real-Leather.
5.Suitable for all kinds of upper curve, even for large & thick upper.

Specification:
Machine size: 1400*980*1800mm
N.W/G.W: 390/420KGS
POWER: 3KW
Air pressure: 6 Bar
Capacity: 600 pairs/ 8hr
